如今,正在向发电绿色电力的重点关注。您还可以在这里找到其他几篇文章,所有这些文章都集中在发电的新创新想法上。科学家们正在努力提出发电效率更高,污染的方法。我们有飞行器,,,,太阳能船那不是。但是,这是更科学的,而且要说一些“技术”。另一方面,它的“污染因子”为零,也没有发出噪音。这个想法涉及电场和带电的颗粒(我们稍后还将讨论,并详细说明。最好把您的科学家帽子放在人们身上!)。

Ewicon00

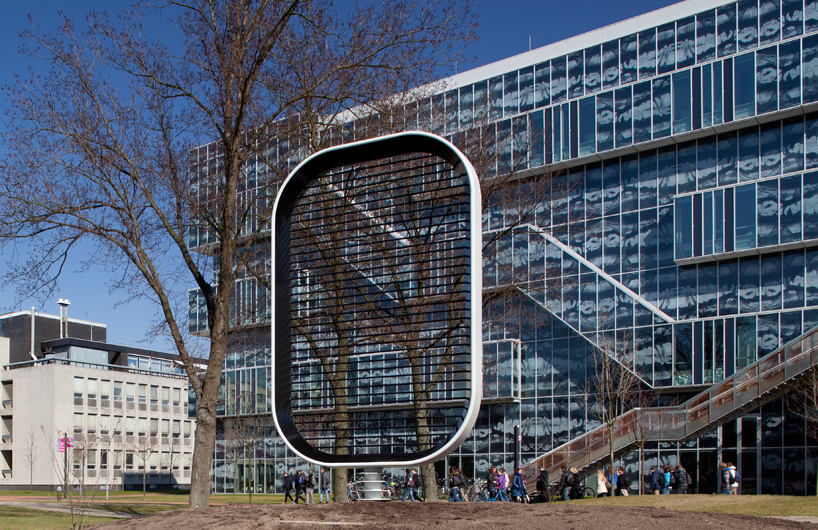

这项非常令人印象深刻的技术是由两位科学家在代尔夫特技术大学构想的。约翰·史密特(Johan Smit)和迪拉迪·迪亚拉姆(Dhiradi Djairam)。该项目被命名为Ewicon,这是“静电风能转换器”的缩写。人们可能会在同一大学的电气工程,数学和计算机科学学院前面找到Ewicon的比例模型。比例模型是由Mecanoo Architects构建的。目前,研究人员仅创建了Ewicon的几个小规模的功能原型,因为建立更大的模型需要更多的资源和资金。让我们继续了解我们引人入胜的小工具的工作方式!与利用风能产生电力的常规方法不同,Ewicon不会将机械能转化为电能。相反,它利用与电场相对的带电粒子运动。用简单的单词,带电的粒子的基本思想朝着与电场相反的方向推动。 The gadget comes with a steel frame that houses almost 40 horizontal insulated tubes and performs the process of ‘Electro spraying’. The process is simple; each tube releases water molecules in the air, the water molecules are positively charged, through a number of nozzles and electrodes. Positive is attracted to negative; we all know that and obviously the positively charged particles tend to move towards anode. However, when the wind pushes the particles away from the negative electrode, the potential energy is increased and can be collected. Viola! There’s how this baby works, quite different than other electricity generation methods, right? Ewicon, is comprised of a battery, an inverter, HVDC (High-Voltage, Direct Current) source, pump and charging system. All the components are held together by metal plate which is in turn supported by insulators made of ceramic. This insulated metal plate works as a capacitor, being charged by the removal of the charged particles.

Ewicon09

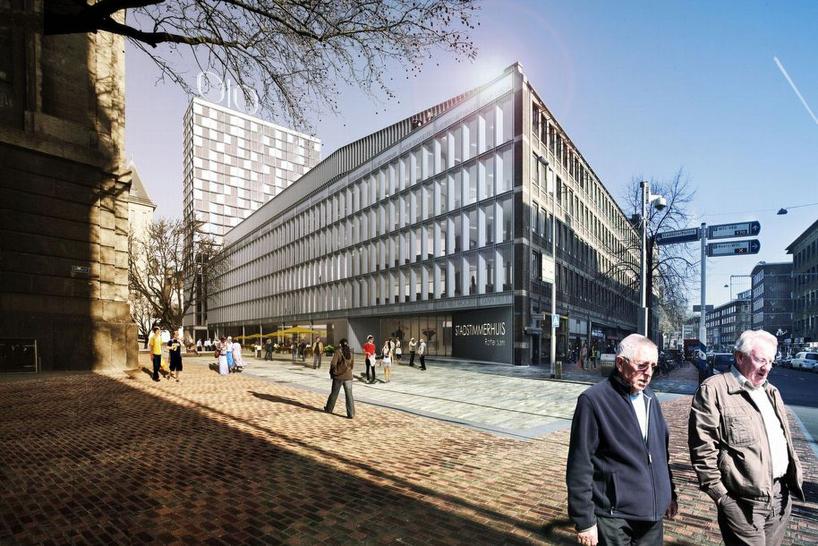

Mecanoo Architects已将EWICON整合在建筑建议中,在城市高层建筑物的顶部

这是一个聪明的设计,您不同意吗?让我们看看它的优势;没有磨损,因为几乎没有运动零件。没有转子或刀片,因此没有振动,没有摩擦和噪音。
